• Outcome:

The outcome of this use case is the optimized Ticket Management Workflow within Zoho Desk, aligned with organizational support processes to ensure efficient ticket handling and improved customer communication.

• Use case Implimentation Steps:

Implementation Stage 1: Configure Workflow Rules

1. Log in toZoho Desk website with Administrator privilege.

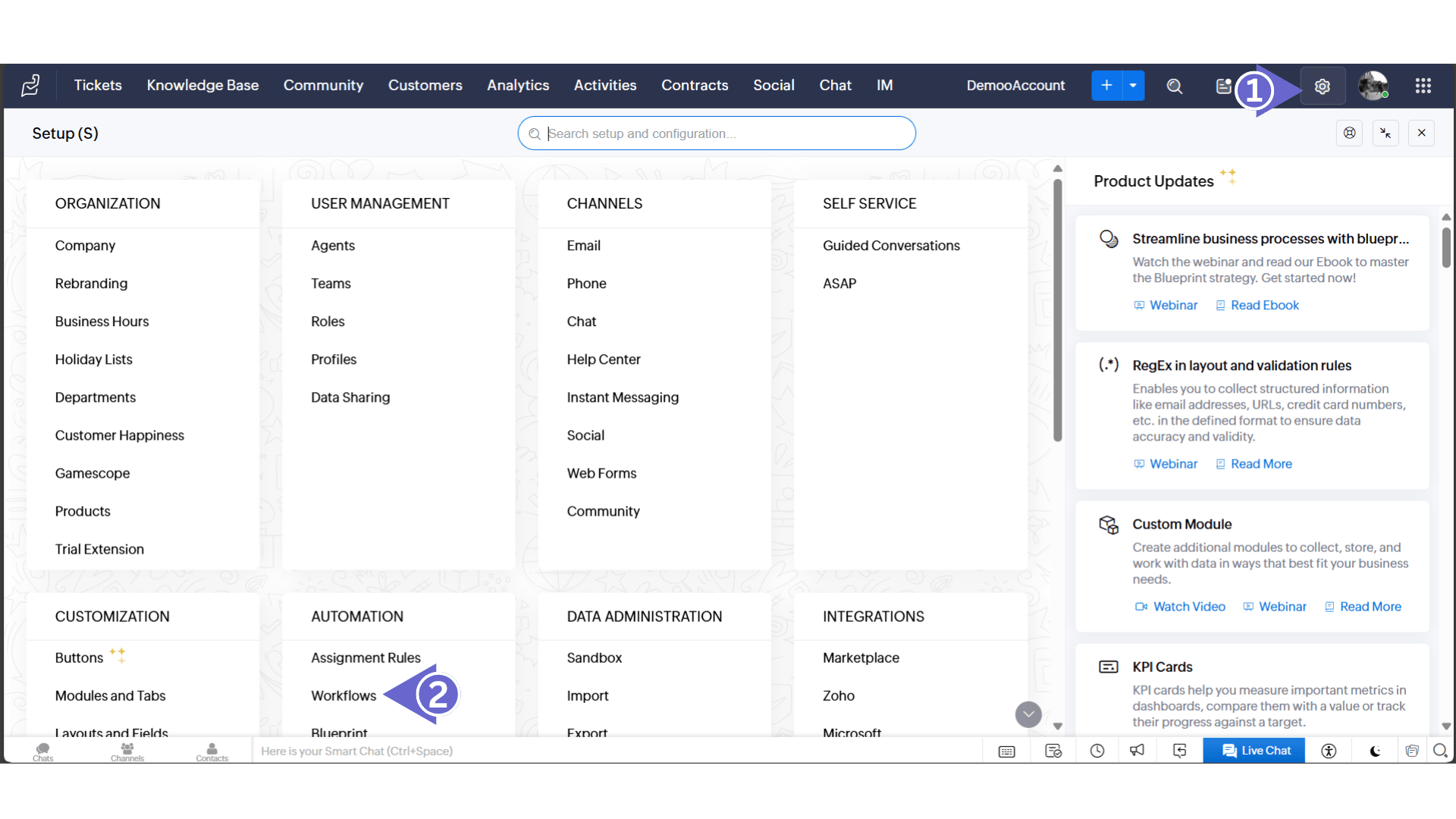

2. Go to Setup > Automation > Workflow and Create Rule.

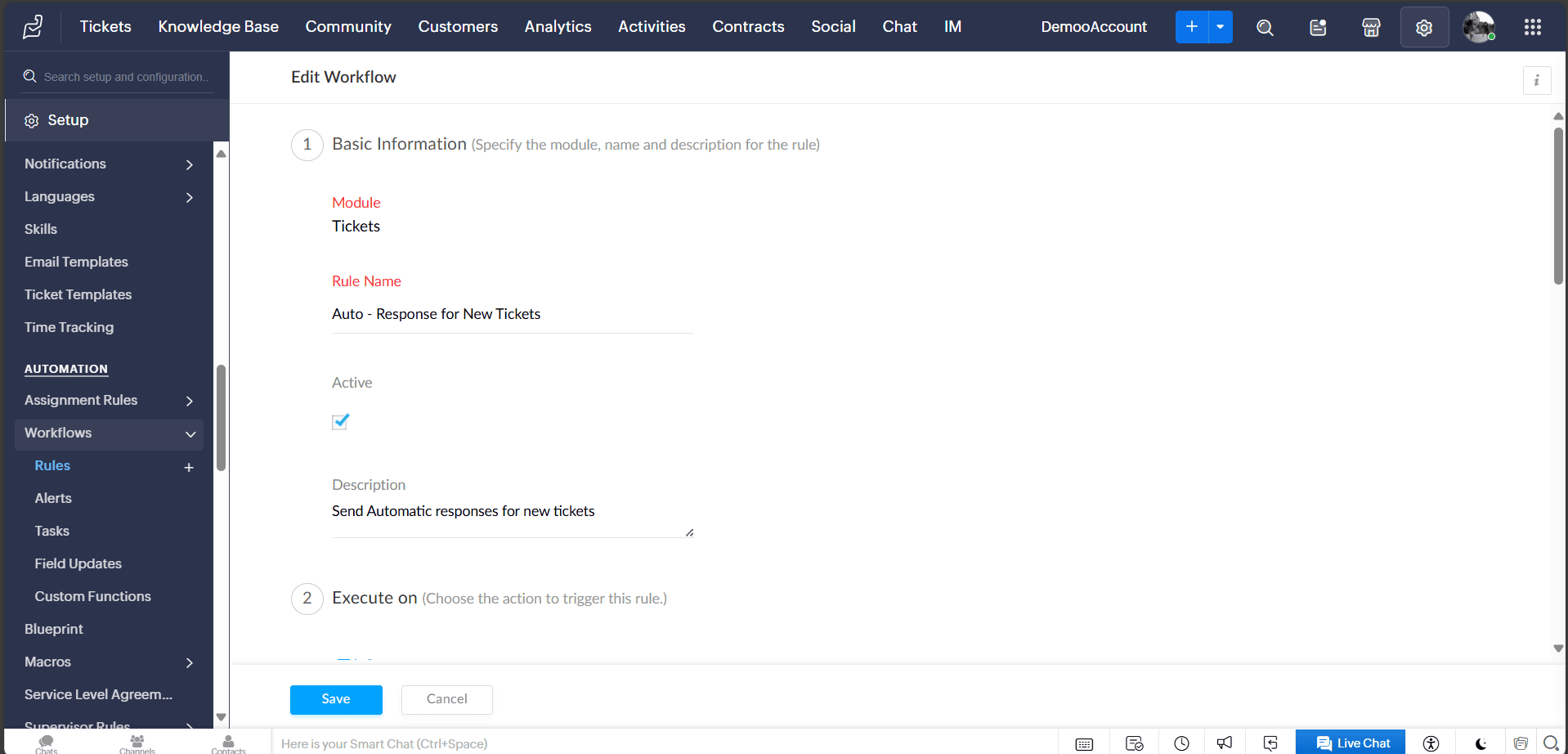

3. Define the rule name, description and department.

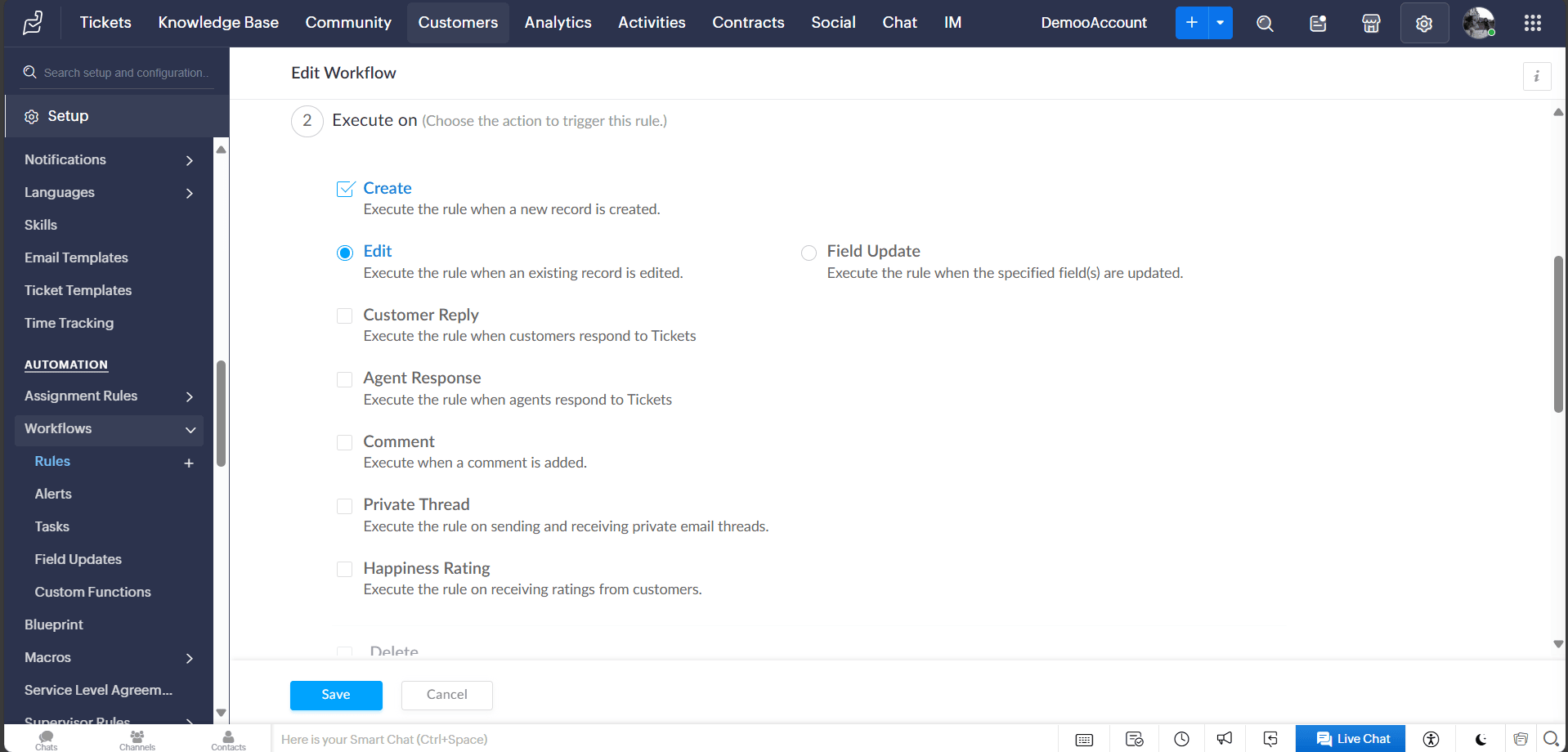

4. Select correct Execution or Triggers for the rules

5. Define the criteria for triggering the workflow.

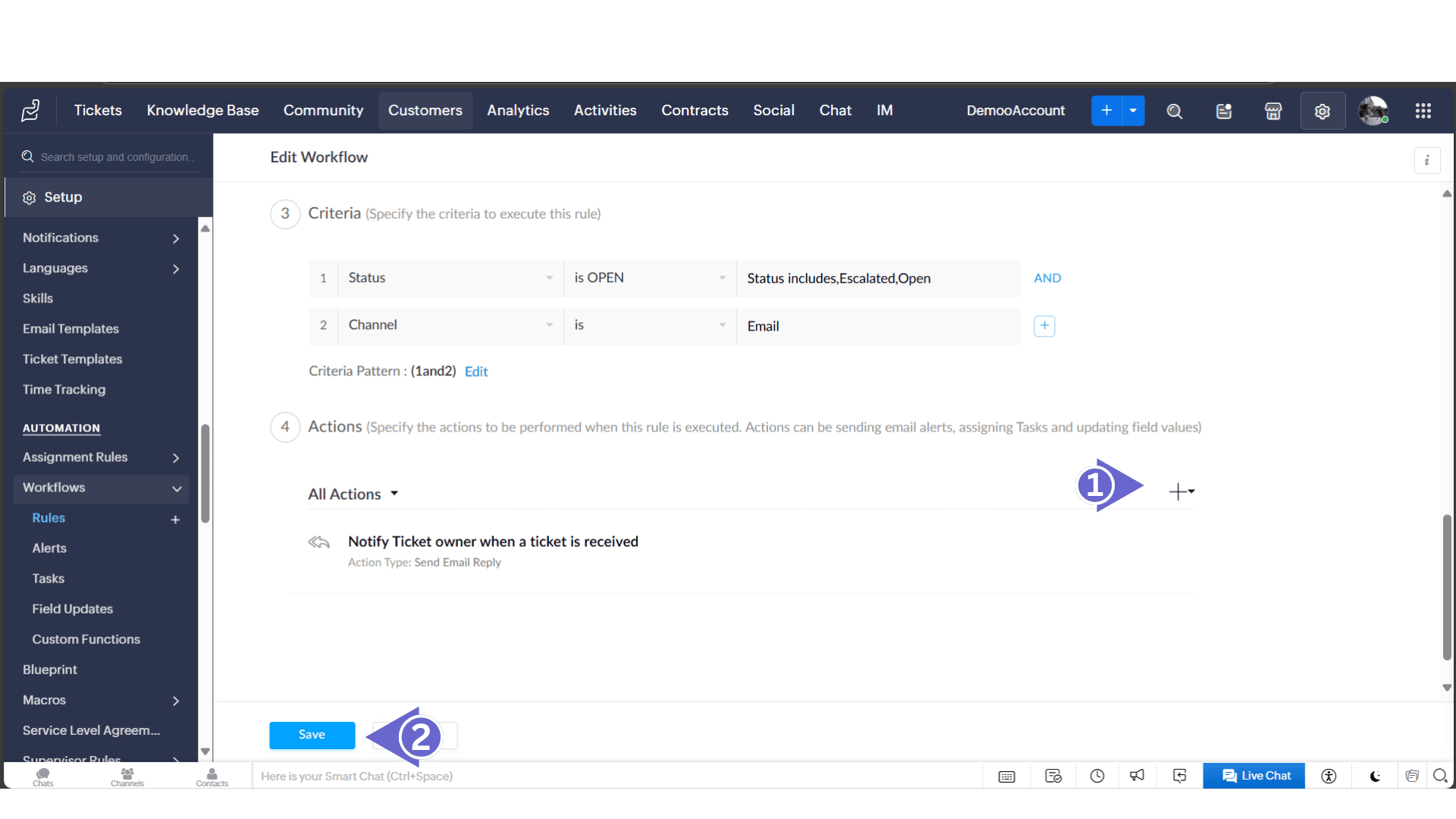

6. Select correct Actions and create action according to the organizations needs.

Implementation Stage 2: Set Up actions

Description: Define actions for the workflow, such as sending acknowledgment emails or assigning tickets to specific agents or departments.

Input:

- Email template or message content.

- Agent or department assignment settings.

Output:

- Actions defined and linked to the workflow rule.

- Confirmation message for successful action setup.

Implementation Stage 3: Test Workflow Rules

Description: Test the workflow rules by raising tickets via email to verify automation execution.

Steps:

1. Compose an email to the support address integrated with Zoho Desk.

2. Verify if the email converts into a ticket and triggers the workflow actions.

3. Check for notifications and ticket assignment accuracy.

Input:

- Test email details.

- Workflow rule setup for criteria and actions.

Output:

- Verified functionality of ticket creation and workflow actions.

- Identified and resolved issues (if any).

Implementation Stage 4: Adjust and Optimize

Description: Fine-tune the workflow based on test results to ensure optimal performance and alignment with organizational requirements.

Input:

- Test results and feedback.

- Updated workflow configuration.

Output:

- Optimized workflow rules.

- Confirmation of successful adjustments.

Implementation Stage 5: Deploy and Monitor

Description: Deploy the finalized workflow and monitor its performance in a live environment.

Steps:

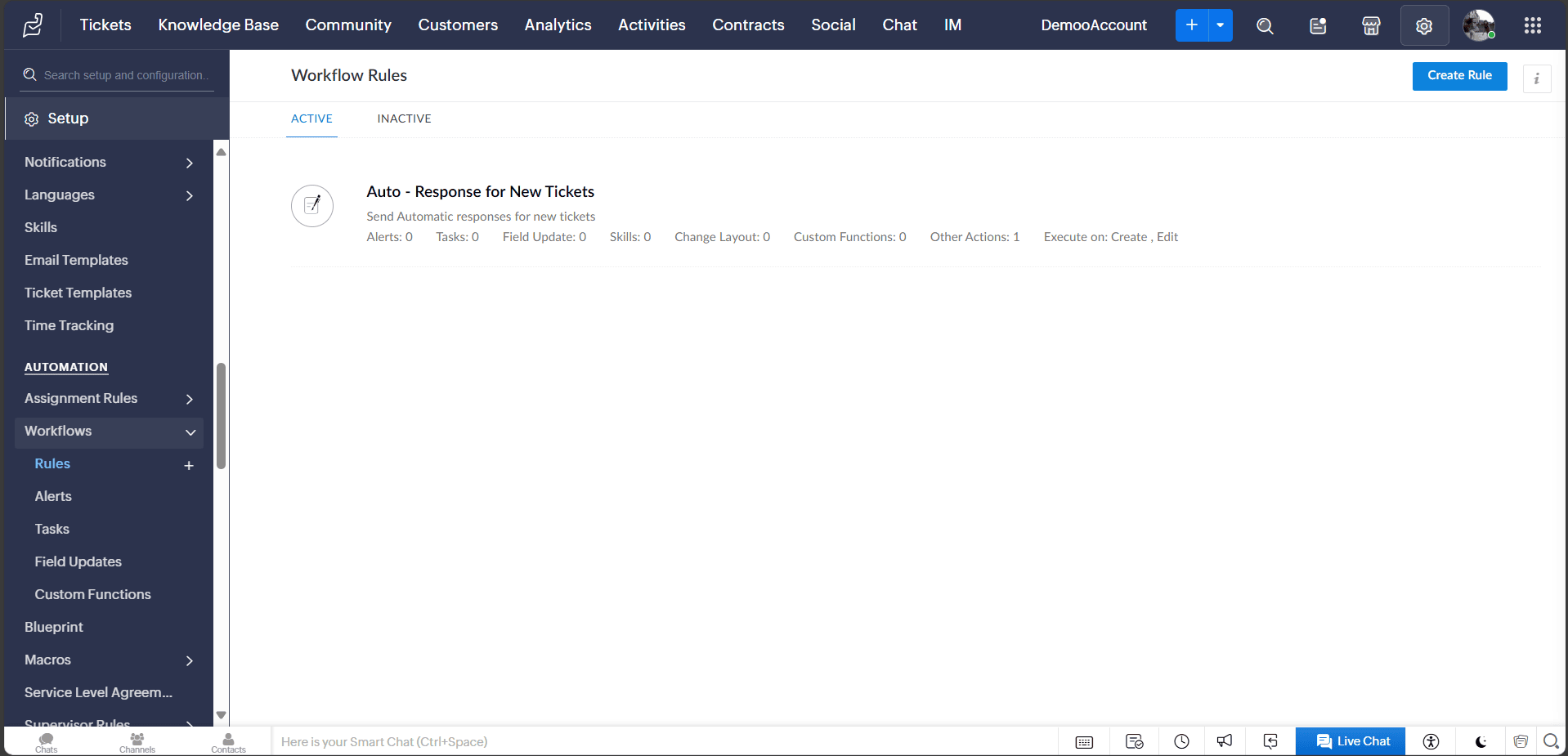

1. Enable the workflow rule for all tickets in the desired department.

2. Monitor ticket automation to ensure consistent performance.

3. Collect user feedback and make iterative improvements if needed.

Input:

- Finalized workflow configuration.

- Monitoring and feedback mechanisms.

Output:

- Deployed and active workflow automation.

- Confirmation message for successful deployment and monitoring.

• Target Audience:

Customers(end-users): Customers can raise tickets through various channels, receive automated responses for acknowledgment, and track the status of their issues or queries.

Support Agents: Support agents can leverage the automated workflows to efficiently manage, prioritize, and resolve tickets, ensuring timely and accurate customer support.

Administrators: Administrators can monitor the workflow's performance, update configurations, and ensure the system aligns with organizational support processes and policies.

• Users:

Customers(end-users): Individuals who raise support tickets via email or other channels and benefit from automated responses acknowledging their queries.

Support Agents: Team members who handle the tickets generated through the automation, using the streamlined workflow to prioritize and resolve issues efficiently.

Administrators: Professionals responsible for configuring, maintaining, and optimizing the automated ticket workflows to ensure smooth operation and alignment with organizational needs.

• Flow Chart:

• Tool Permission Required:

      Zoho Desk

• Link Required:

      Flow Chart
